Room ventilation and air filtration are critical components for maintaining optimal air quality across various settings, including industrial, commercial, and residential applications. By ensuring a continuous flow of fresh air from outside, you not only provide essential O2 but also flush out contaminants, pathogens, impurities, and particulate matter present in the air.

Simultaneously, expelling indoor air helps regulate temperature and humidity levels, preventing the buildup of moisture that can lead to mould and mildew, thus further improving air quality. Additionally, refreshing the air indoors helps eliminate strong odours, enhancing the overall environment.

Below is a comprehensive guide to setting up an efficient ventilation and air filtration system for your space.

Key Components for Room Ventilation and Air Filtration:

This guide assumes you have already selected or purchased your ventilation and air filtration system components. Here are the three essential elements required for creating an effective system:

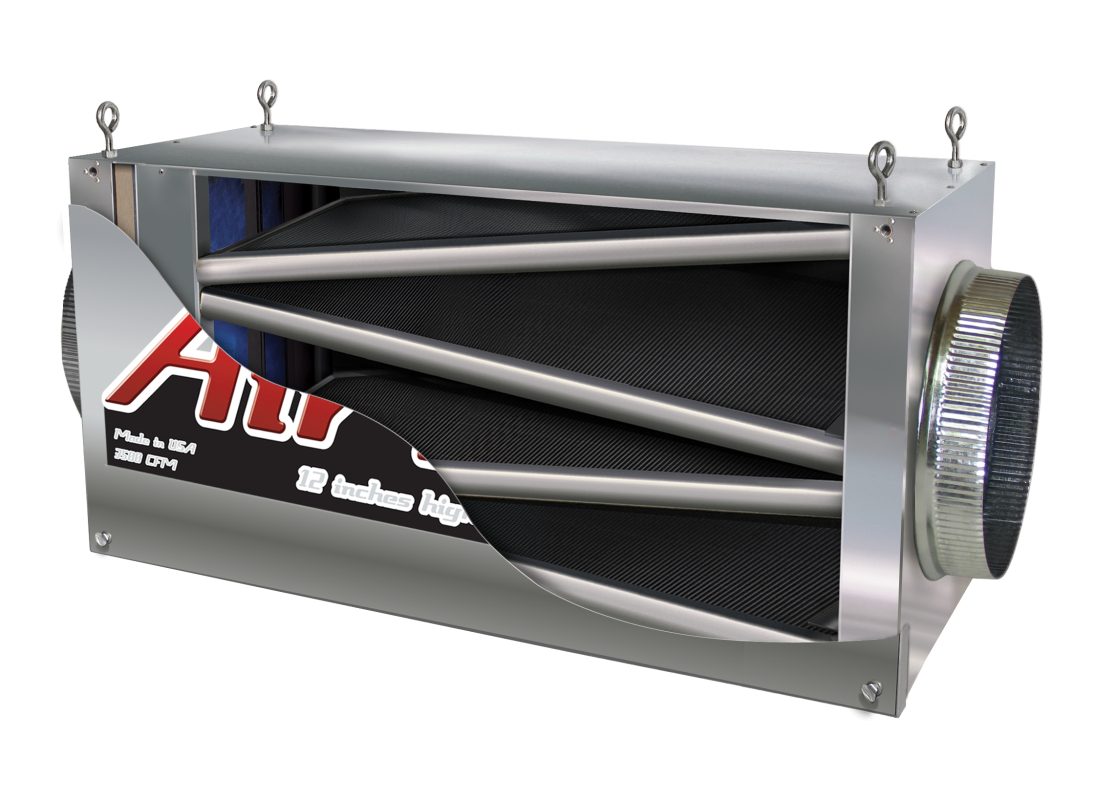

  1. Carbon Filter: To control odours and filter out contaminants, pathogens, and impurities present in the air, a carbon filter is essential. Also referred to as carbon air scrubbers, these filters effectively capture and neutralize odours, ensuring a fresh and clean environment. Carbon filters are particularly useful for spaces dealing with strong aromas and help improve overall air quality by trapping pollen, spores, and other airborne particles.

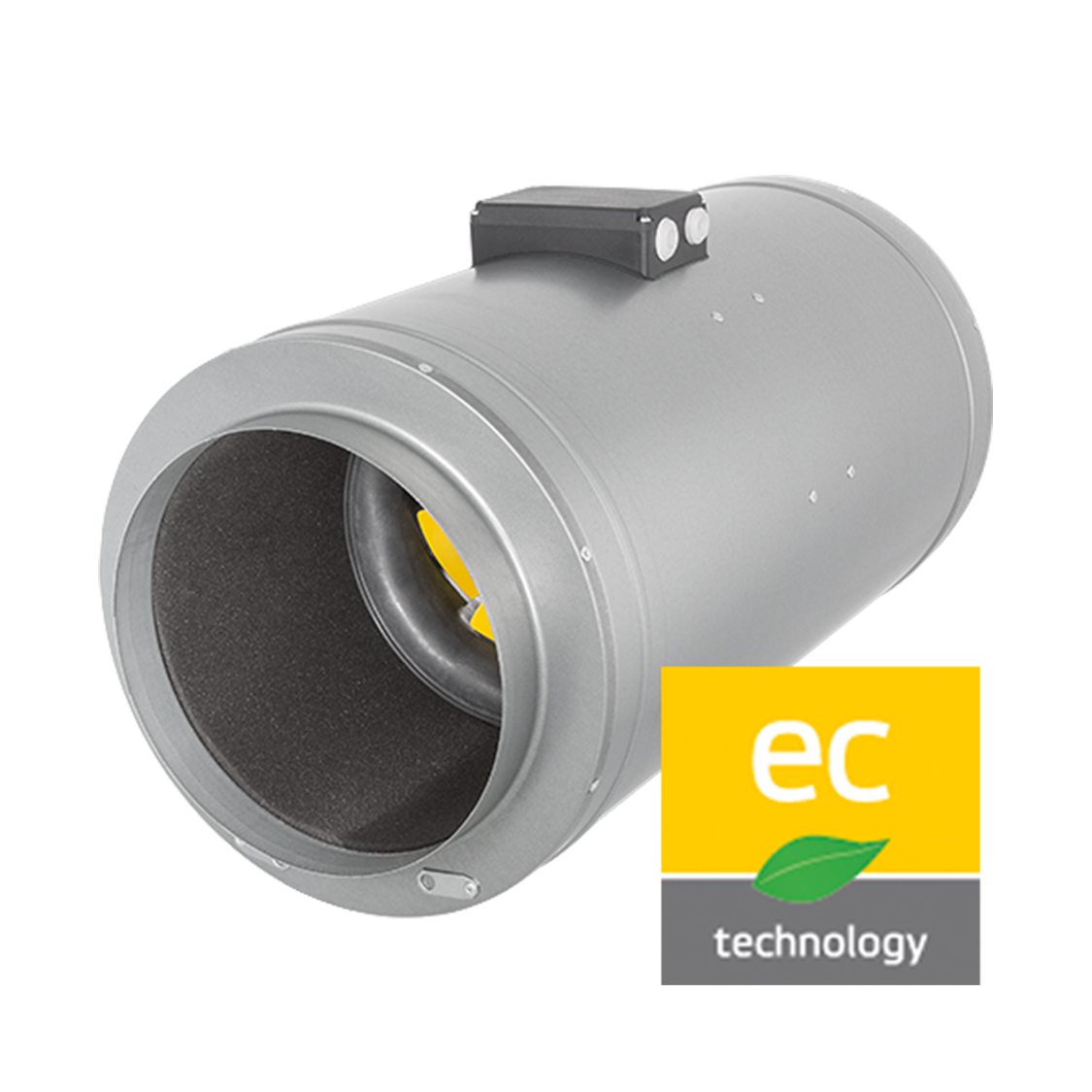

  2. Inline Duct Fan (Active Exhaust Fan): Also known as an extractor fan, an inline duct fan plays a crucial role in expelling hot and humid air from your space while filtering out contaminants and impurities. Fluctuations in temperature and humidity can significantly impact air quality. Therefore, it’s essential to maintain optimal climate conditions within your space. An inline duct fan helps achieve this by expelling hot air and bringing in cooler, fresher air from outside. The efficiency of the fan depends on factors such as insulation and the layout of your space.
  3. Duct Tubes: Ducting serves as a conduit for directing stale air away from your space while filtering out particulate matter and impurities present in the air. Typically made of aluminum, duct tubes are designed to minimize tears and damage. The configuration and size of ducting influence the performance of the inline duct fan.
Reducing and Filtering Smoke Particles:

Cigarette and wood smoke particles can severely degrade indoor air quality, posing health risks. To effectively reduce and filter these particles, a multi-layered approach using high-efficiency particulate air (HEPA) filters combined with activated carbon filters is recommended:

  1. HEPA Filters: HEPA filters are capable of capturing 99.97% of particles as small as 0.3 microns, which includes most smoke particles from cigarettes and wood. Installing a HEPA filter in your ventilation system ensures that these harmful particles are removed from the air.
  2. Activated Carbon Filters: Activated carbon filters are highly effective at adsorbing smaller volatile organic compounds (VOCs) and odours that HEPA filters might miss. Carbon filters work by trapping gases and odours in a bed of charcoal, neutralizing them. This is particularly useful for eliminating the smell of smoke and other persistent odors.
Typical Setup for Room Ventilation and Air Filtration:

Various configurations can be employed to facilitate airflow in your space. A common setup involves placing the fan and filter inside the space, which helps manage noise levels while effectively ventilating the area and filtering out contaminants. However, depending on factors such as the layout and obstacles within your space, you may need to position the fan and filter outside the room.

It’s recommended to install the extraction fan at the highest point possible to efficiently remove hot air, as heat naturally rises. Similarly, positioning the carbon filter at a higher point enhances its performance in filtering contaminants and odours.

Determining Inline Fan Size:

The size of your space dictates the required airflow for adequate ventilation, measured in cubic feet per minute (CFM). Calculating the volume of your space and factoring in accessories such as ducting and carbon filters helps determine the necessary CFM rating for the inline fan.

To account for the impact of accessories on fan performance, it’s essential to consider factors such as the number and sharpness of bends in the ducting. These considerations help ensure the fan can effectively move the calculated airflow and filter out contaminants present in the air.


Managing Noise:

High-powered fans used for ventilation may generate noise, which can be disruptive. Selecting fans with speed controls and higher CFM ratings than the minimum requirement allows for quieter operation at lower speeds without compromising performance. Additionally, implementing soundproofing measures such as insulation and attaching silencers to intake vents can help reduce noise levels within the space, ensuring a more comfortable environment while filtering contaminants from the air.

By following these guidelines and utilizing the right components, you can create an efficient and effective room ventilation and air filtration system, ensuring a healthy and comfortable indoor environment.

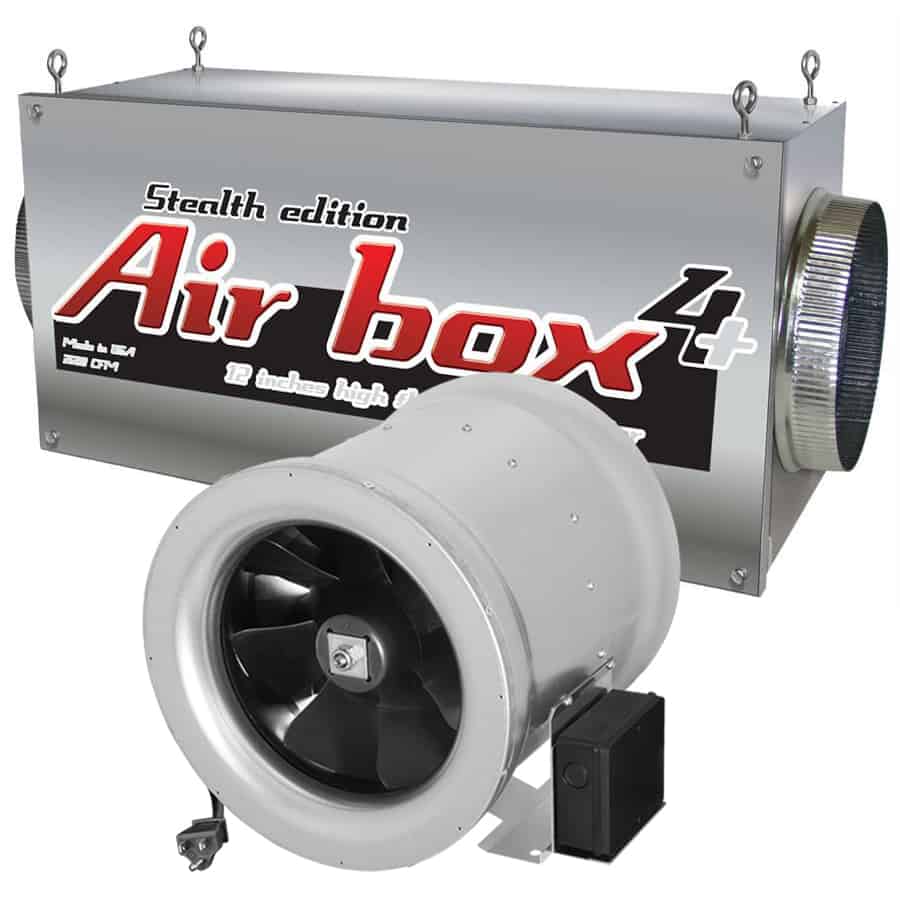

For residential, commercial and industrial applications. Order Air Box filters and Ruck inline fans direct from the manufacturer at:
