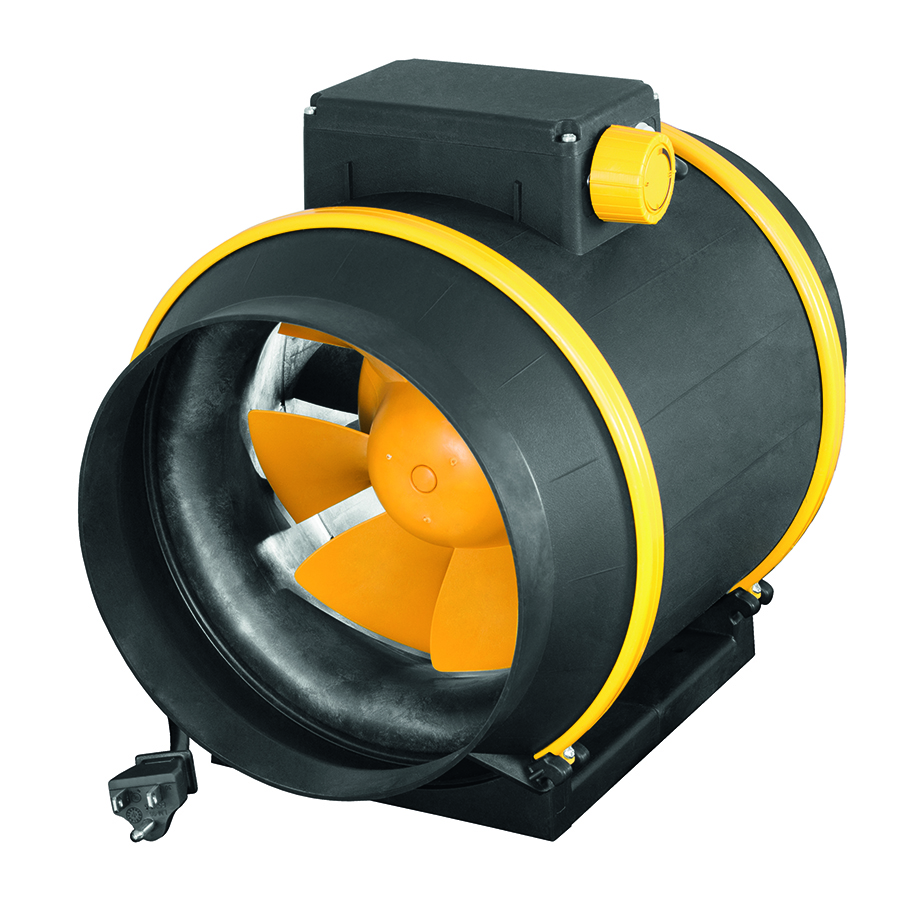

Ruck 6″ Prime Evo CFM 421 Inline Fan, 3 speeds

US$ 216.95

RUCK Air Movement ventilation fans create a powerful airflow and will quickly ventilate your space, bring the temperature and humidity down, and push or pull odors and other pollutants through your air filters. These well-designed fans achieve the perfect balance between air flow and wind noise, and are among the quietest available in the industry.

Sound insulated casing for silent operation
Incorporated Prime mixed flow fan
Very high efficiency rates
Integrated 3-speed switch
One-phase AC motor
Galvanized sheet steel casing
Made in Germany

SKU: 147608 Categories: Inline Duct Fans, Ruck Fans Brand: Ruck

Description

Features:

Speed: 3 Speeds (Full Specs Below)
Voltage (V): 120
Hz: 60
L/H (cm): 30.9/23.9
L/H (in): 12.17/9.41
Blade Design: Mix Flow
Housing: Composite
Weight (kg): 3.5
Weight (lbs): 7.7
Max db.(A) Sound: 74

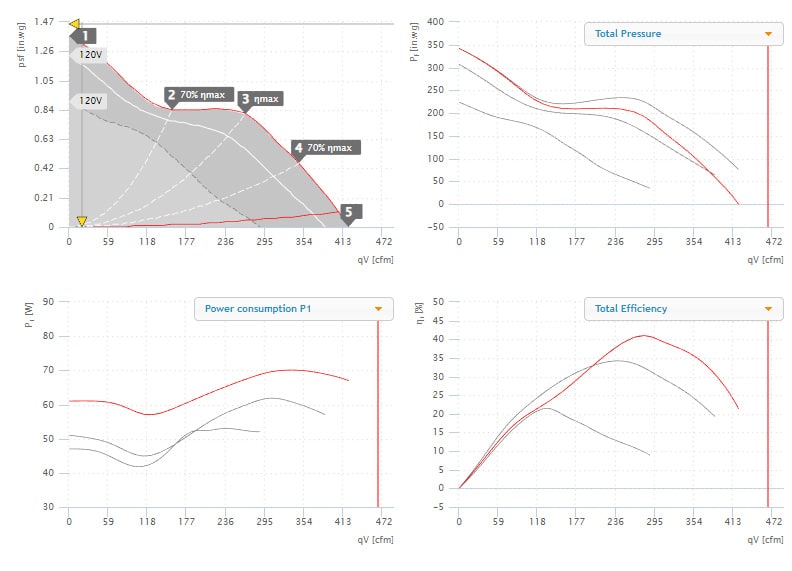

DATA SHEET

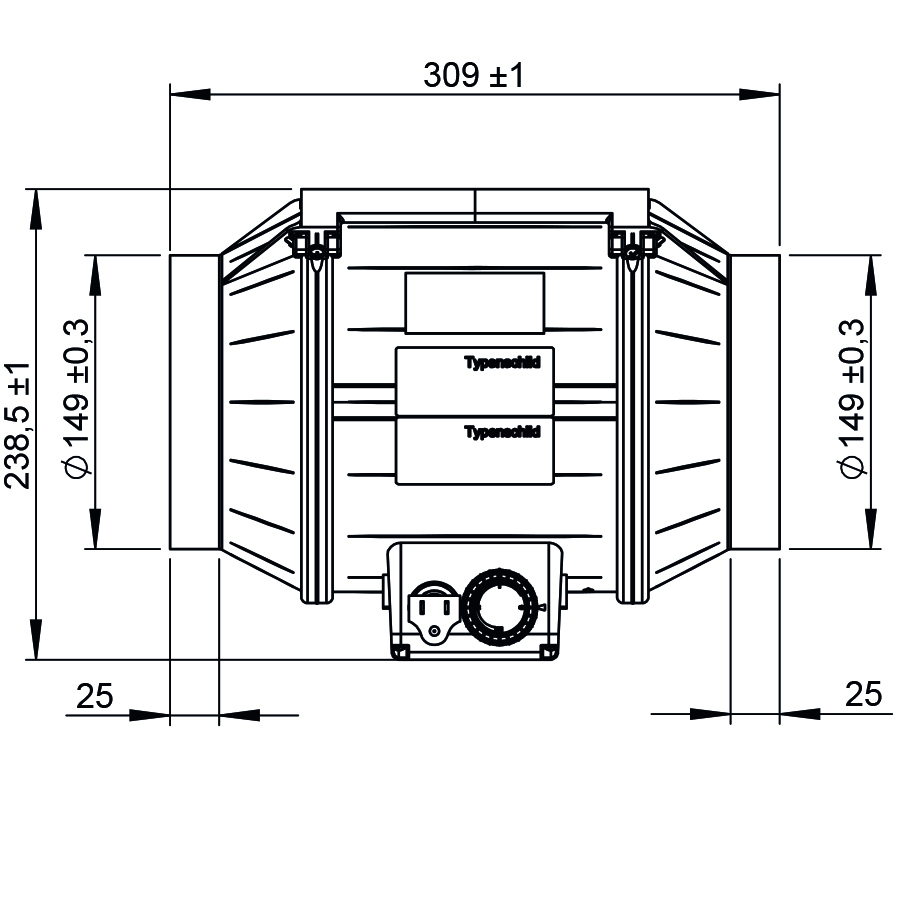

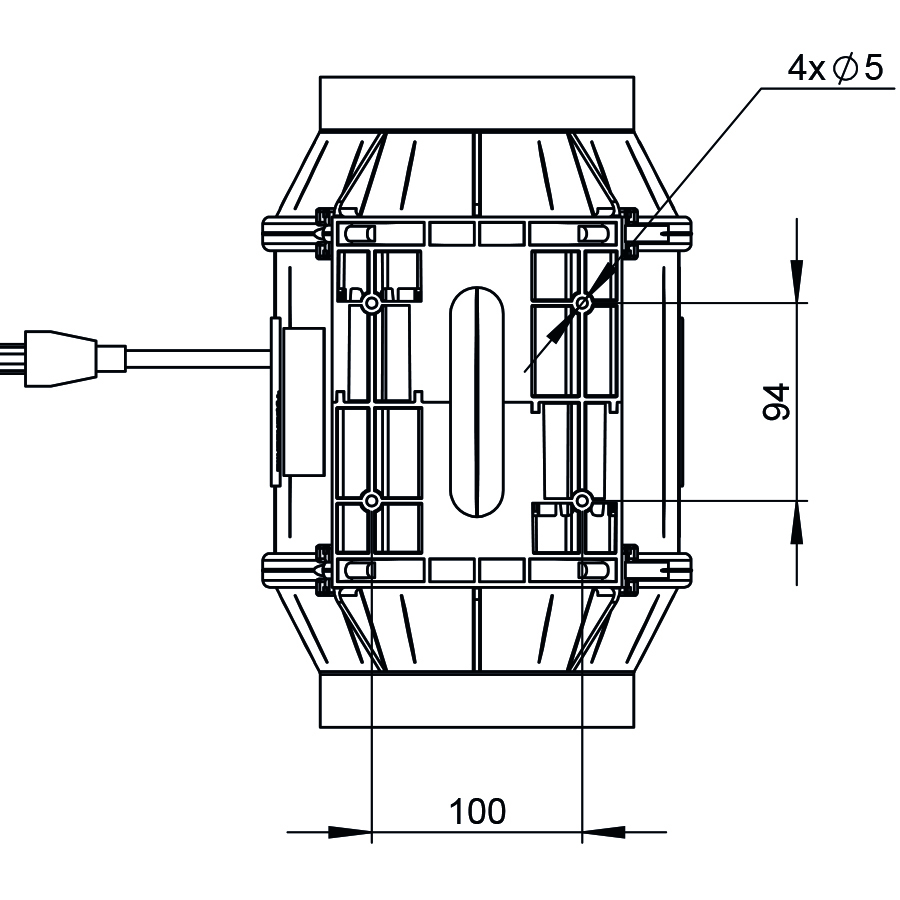

DIMENSIONAL DRAWINGS

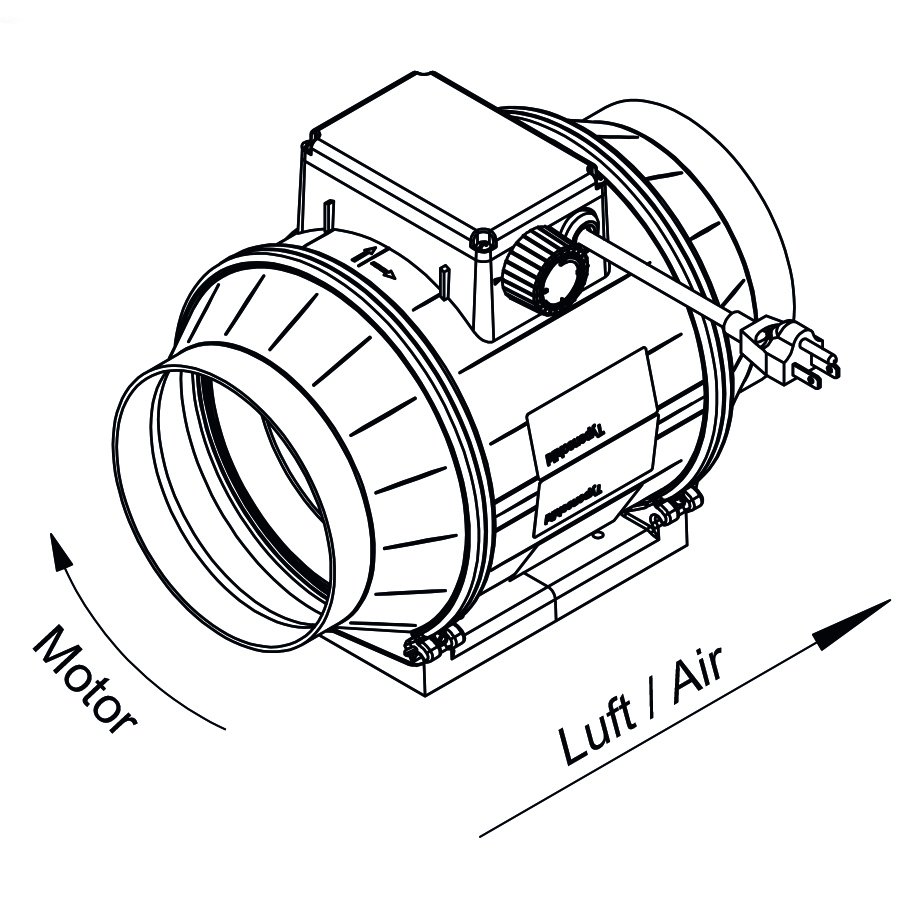

OPERATIONAL INSTRUCTIONS

Specifications

Prime EVO 6″ – SKU: 147608	Speed 1	Speed 2	Speed 3
CFM Rating:	287	385	421
Max Airflow m3h:	488	654	700
Voltage V:	120
Hz:	60
Max Amps A:	0.5	0.5	0.7
Max Watts:	52	57	70
Max RPM:	3400
Rated Speed:	2345	3026	3321
Max Pressure PA:	140	260	310
L/H (cm):	30.9/23.9
L/H (inches):	12.17/9.41
Blade Design:	Mix Flow
Housing:	Composite
Weight (kg):	3.5
Weight (lbs):	7.7
Motor	AC
Max db.(A) Sound:	77
Extra	EZ Bracket
