$ 184.00

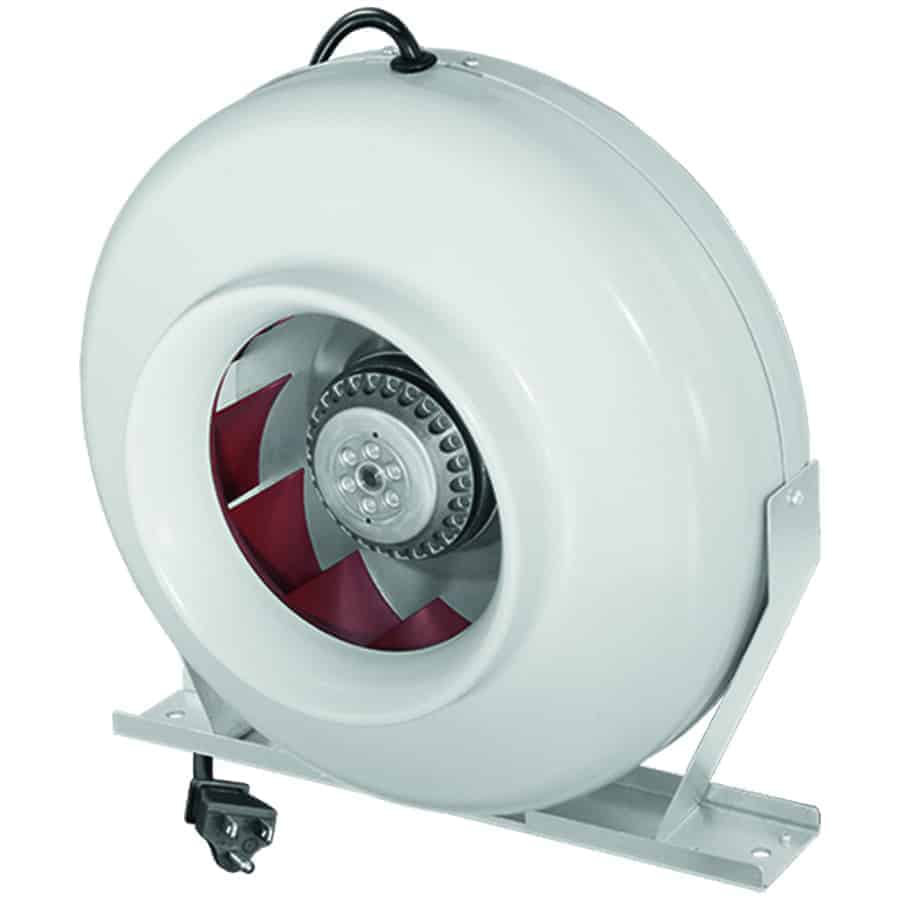

RUCK Air Movement Ventilation Fans are centrifugal type inline duct fans, featuring a backward curved propeller design that creates a very powerful airflow. RUCK Air fans will quickly ventilate your space, bring the temperature and humidity down, and push or pull odors and other pollutants through your air filters. These well-designed fans achieve the perfect balance between air flow and wind noise, and are among the quietest available in the industry.
Features:
| Classic Fan HO 10″ – SKU: 147896 | |
| CFM Rating: | 806 |
| Max Airflow m3h: | 1370 |
| Voltage V: | 120 |
| Hz: | 60 |
| Max Amps A: | 2.53 |
| Max Watts: | 286 |
| Max RPM: | 3360 |

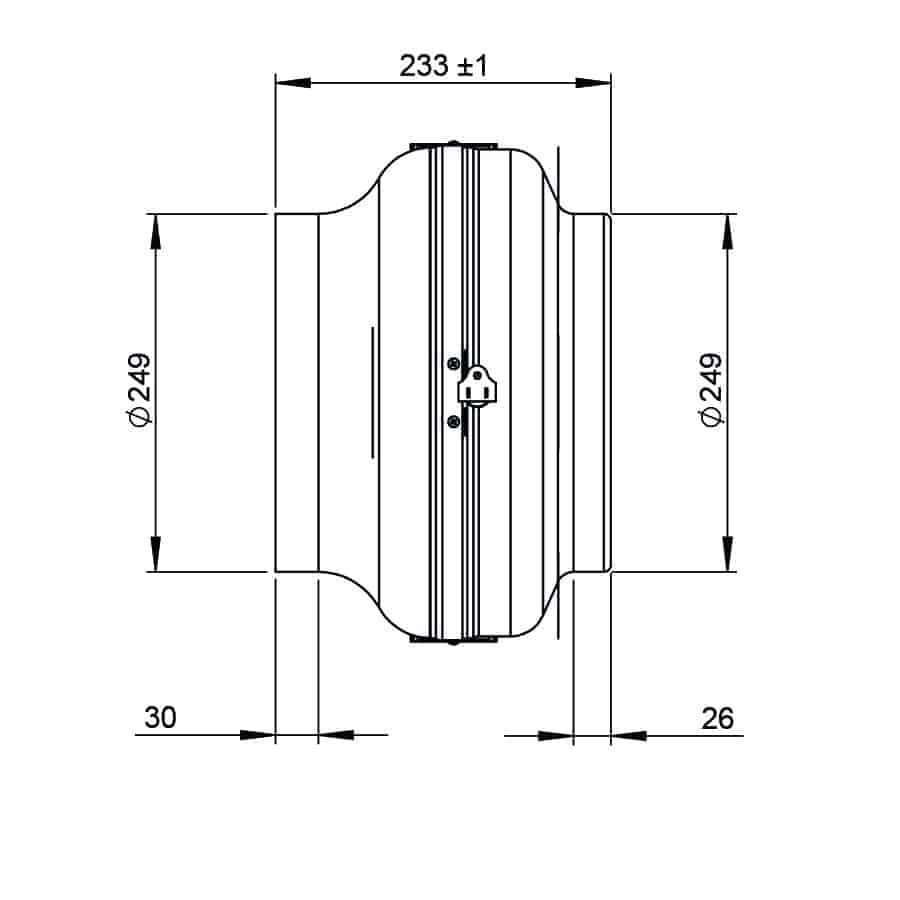

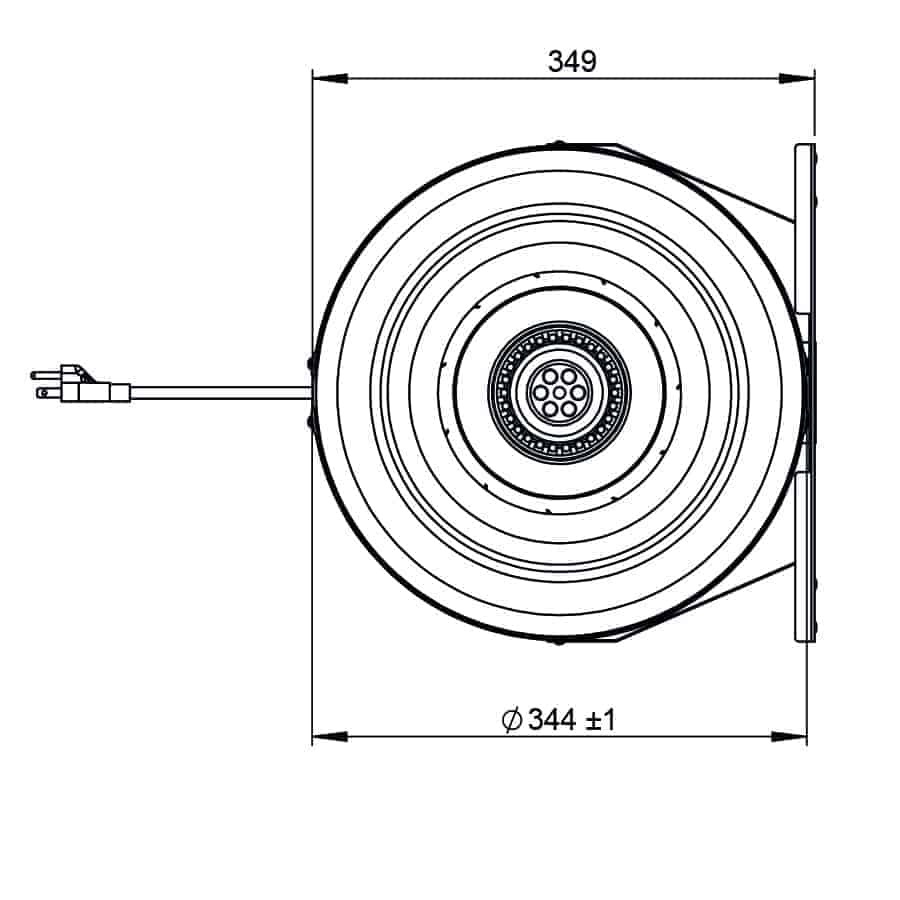

| L/H (cm): | 23.3/34.4 |
| L/H (inches): | 9.1713.5 |
| Blade Design: | Centrifugal |
| Housing: | Powder Coated Metal |
| Weight (kg): | 5.49 |
| Weight (lbs): | 12.10 |
| Max db.(A) Sound: | 75 |
| Weight | 5.49 kg |
|---|---|
| CFM Rating: |
806 |
| Max RPM: |
3360 |
| Voltage: |
120V |
| Max Amps A: |
2.53 |
| Unit size: |
9.17/13.5 |
ALASKA, HAWAII, PUERTO RICO: a delivery surcharge will apply to these locations. We will notify you before your order ships.
Order processing can take up to (5) business days for Air Box units and replacement filters and up to (4) weeks for custom-built units. We are prioritizing orders for essential services which include government, schools and healthcare industry.
Shipping costs may vary on shipment date due to fluctuating fuel costs and other carrier surcharges. We are doing all we can to ship your orders sooner and at the lowest freight cost possible, thank you!
When Ordering Bundles ( Fans + Air filtration units) order will be shipped separately from 2 different locations. One product might arrived first than the other.
For Air Box shipping policy go here
Room volume is the cubic footage of the room. To calculate this, multiply the length, width, and height of the room.
Number of air changes per hour is the number of times you want the air in the room to be replaced in an hour. (A good rule of thumb is to aim for 2-3 air changes per hour).
60 is the number of minutes in an hour.
For example:
If a room is 10 feet long, 12 feet wide, and 8 feet high, the room volume would be 960 cubic feet. If you want the air in the room to be replaced 2 times per hour, you would need a fan with a CFM rating of 320.
CFM = (960 cubic feet * 2 air changes per hour) / 60 minutes per hour = 320 cubic feet per minute
It is important to note that this is a general formula. The actual CFM requirements to ventilate a room may vary depending on a number of factors, such as the number of people in the room, the activities taking place in the room, and the type of ventilation system in the room. If you are unsure how many CFM you need, it is always best to consult with a professional.
Here are some additional factors to consider when calculating CFM requirements:
By considering all of these factors, you can determine the correct CFM requirements for your room and ensure that you have the proper ventilation to keep the air fresh, healthy and clean.
