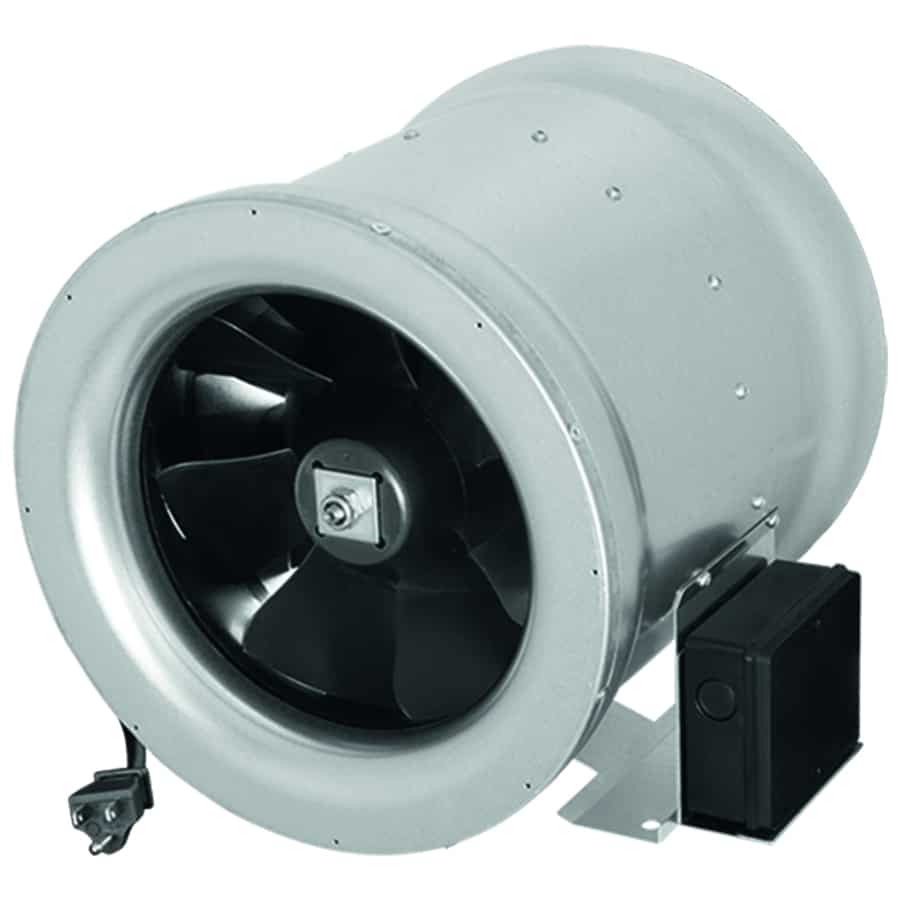

Ruck Prime 12” | 1684 CFM Inline Fan

$ 417.95

RUCK Air Movement Ventilation Fans create a very powerful airflow. RUCK Air fans will quickly ventilate your space, bring the temperature and humidity down, and push or pull odors and other pollutants through your air filters. These well-established fans achieve the perfect balance between air flow and wind noise, and are among the quietest available in the industry.

  • Mixed flow fan with high efficiency rates
  • 3D shaped impeller blades
  • Galvanized metal housing
  • Integrated power switch
  • One-phase AC motor
  • Including mounting bracket
  • German-made
SKU: 147509 Categories: , Brand:

Features:

  • Voltage (V): 120
  • Hz: 60
  • 1684 CFM
  • Blade Design: Mixed Flow Fans
  • Weight (kg): 10.4
  • Weight (lbs): 23.1
  • Max db.(A) Sound: 85
DATA SHEET

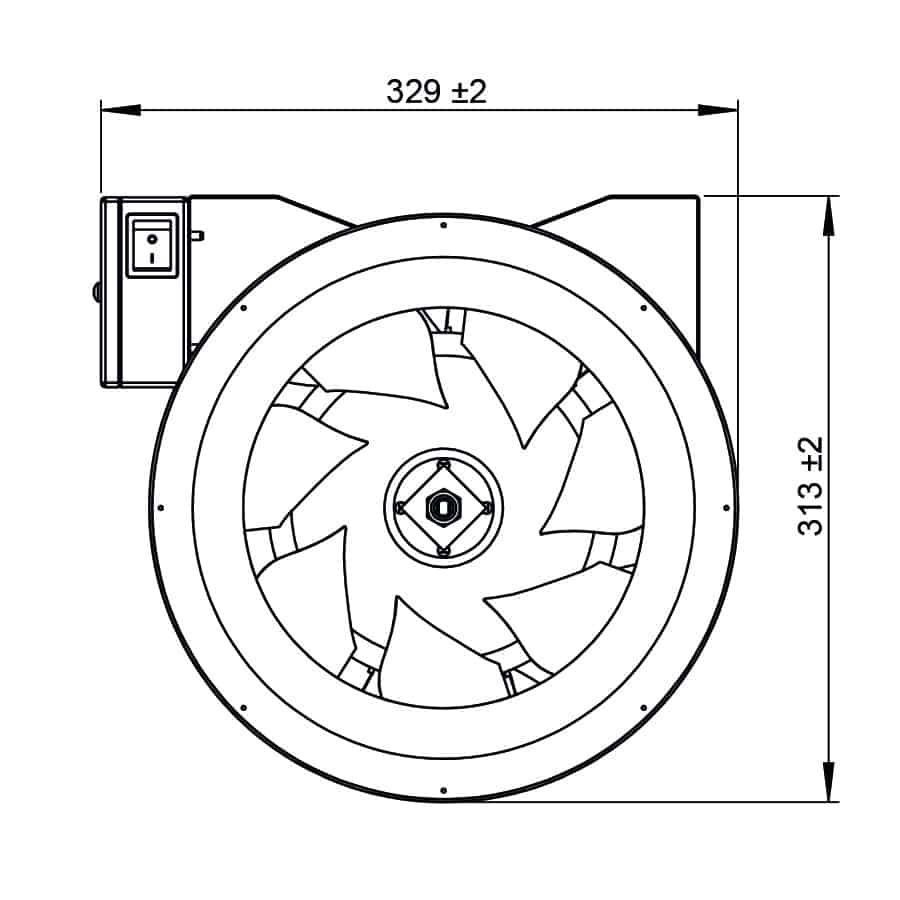

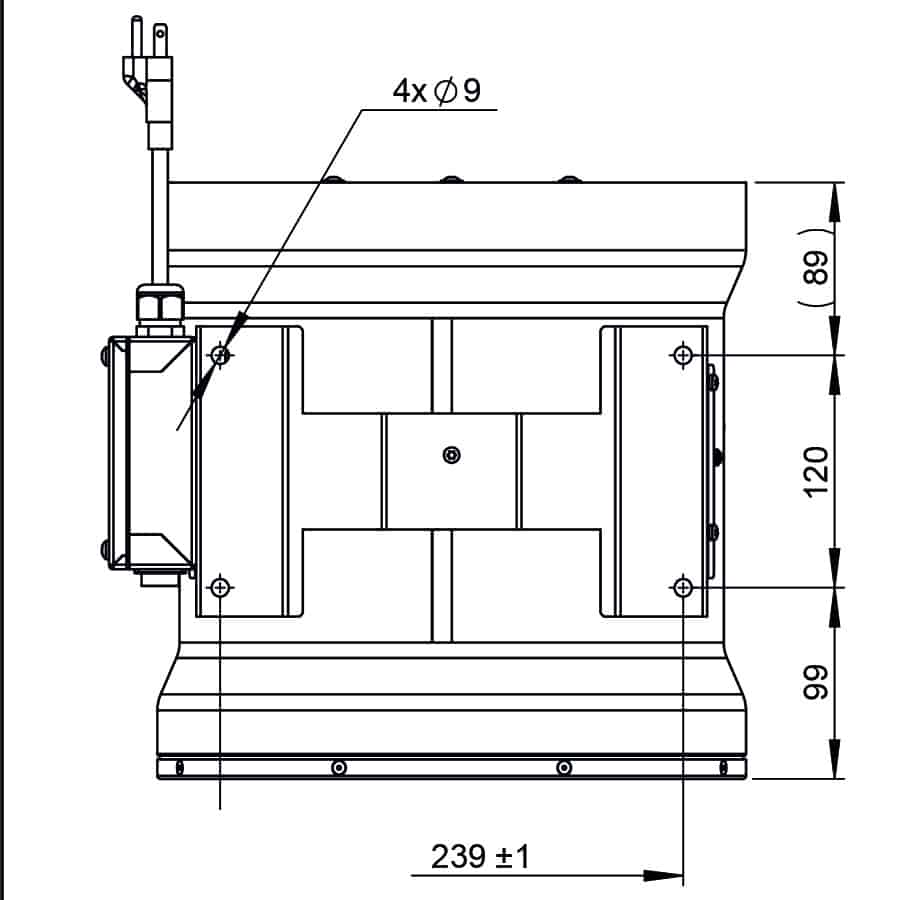

DIMENSIONAL DRAWINGS
OPERATIONAL INSTRUCTIONS

Specifications

12″ Prime | 60 Hz
Voltage 120 V 1~
Current Imax 6.2 A
Ambient temperature 40 °C
Conveyed medium temperature 40 °C
Speed Control V
Motor protection TMI
Insulation class motor F
Weight 10,4 kg
Number of poles 2
IP motor IP00
IP terminal box IP44
Min. operating temperature -25 °C
Product name:

SKU:
Price:
category:
Currency:
Brandname:
Regularprice:
saleprice:
Offer available from:
offer valid upto:
offer_stock:
Offer condition:
product seller:
Weight 10.4 kg
CFM Rating:

1684

Max RPM:

3500

Voltage:

120V

Max Amps A:

6.2
