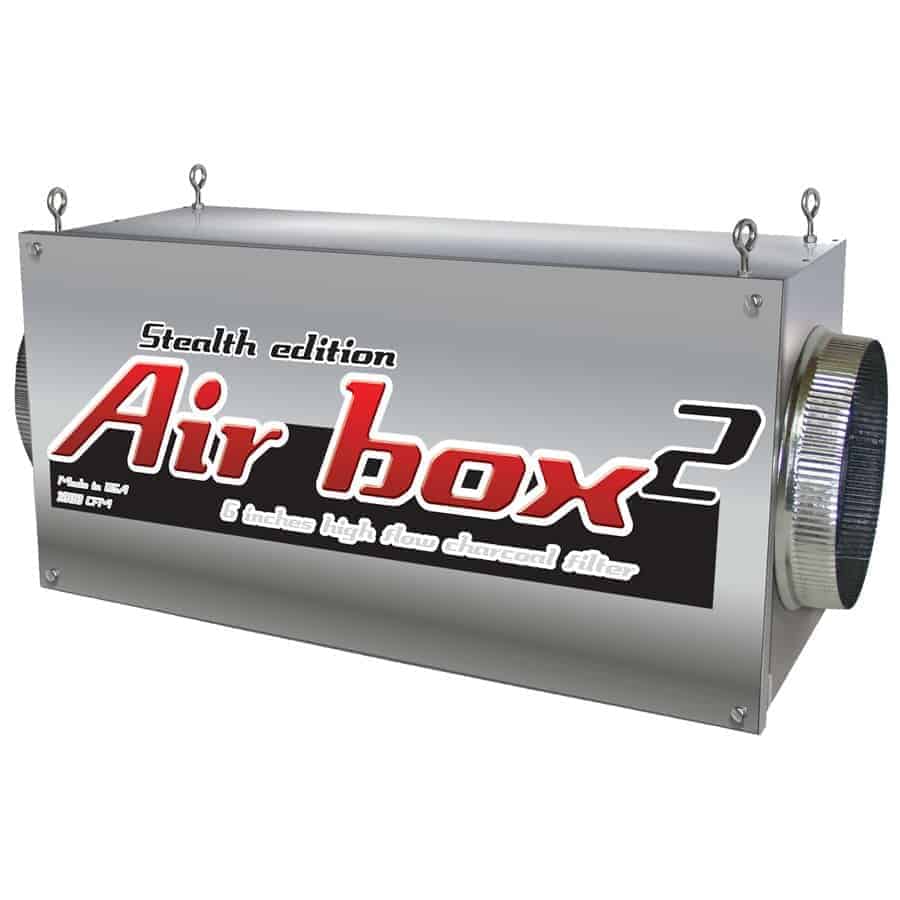

Name: Air Box 2 Stealth 800 CFM 6" Flanges Carbon Inline Filter
Brand: Air Box
SKU: AB02
Availability: InStock
Rating: 5.00 (1 reviews)

Description

Technical Specifications

Air Box original, premium commercial-grade, high-flow carbon filter. Obliterates excess heat, destroys odors and circulates fresh air! Replaceable filters can be changed to maintain optimal performance.

Air Box Set-ups

Inline fans obliterate excess heat and humidity and circulates healthy fresh air. They bring the temperature and humidity down, pushes or pulls odors and other pollutants and pathogens through your air filters.

In an enclosed space, air temperature will be hotter than the environment outside.

Using an active exhaust fan to bring in cooler air will help you regulate the internal temperature. The location of your space will affect how hard your inline duct fan will work, which is largely dependent on how well your space is insulated.

A

B

C

D

Additional information

Recommended Airflow:	334 @ 0.05 sec contact time
Recommended Minimum Airflow:	400 CFM
Max. CFM:	800
Residence Time @ Recommended CFM:	0.04
Pressure (W.G.) @ Recommended CFM:	0.6 W.G.

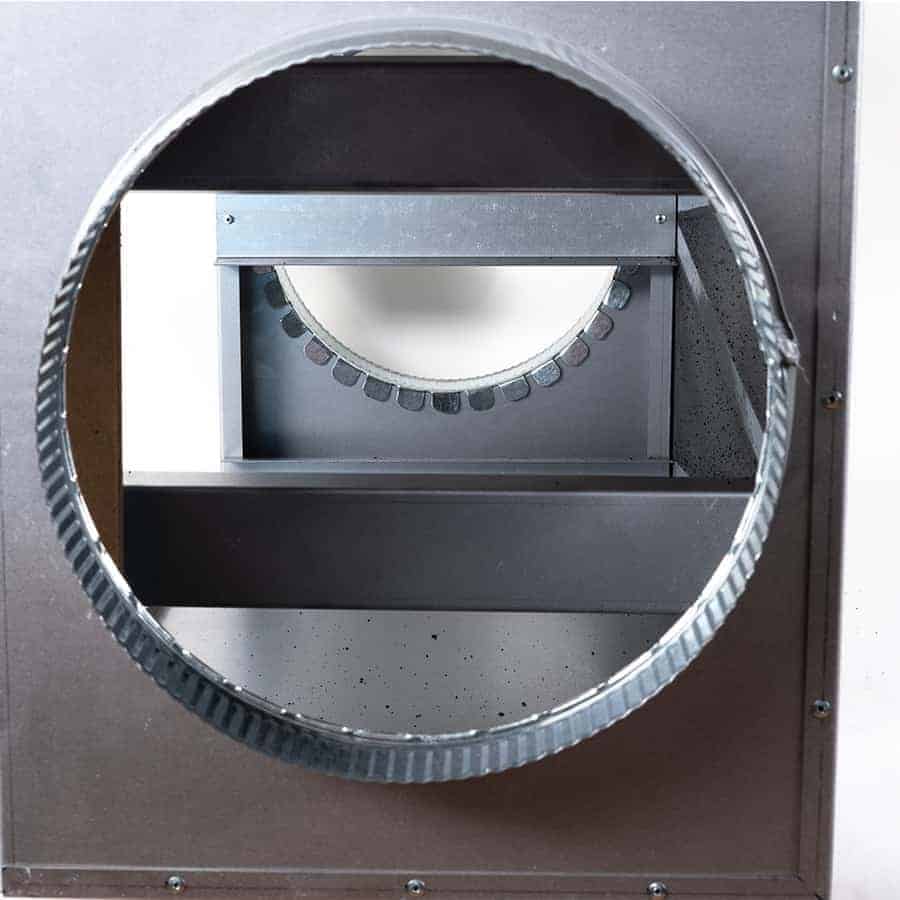

Inlet/Outlet size:	6"
Compatible FANS:	Ruck Classic HO 6” or Ruck 6″ Prime Evo
Prefilter:	No

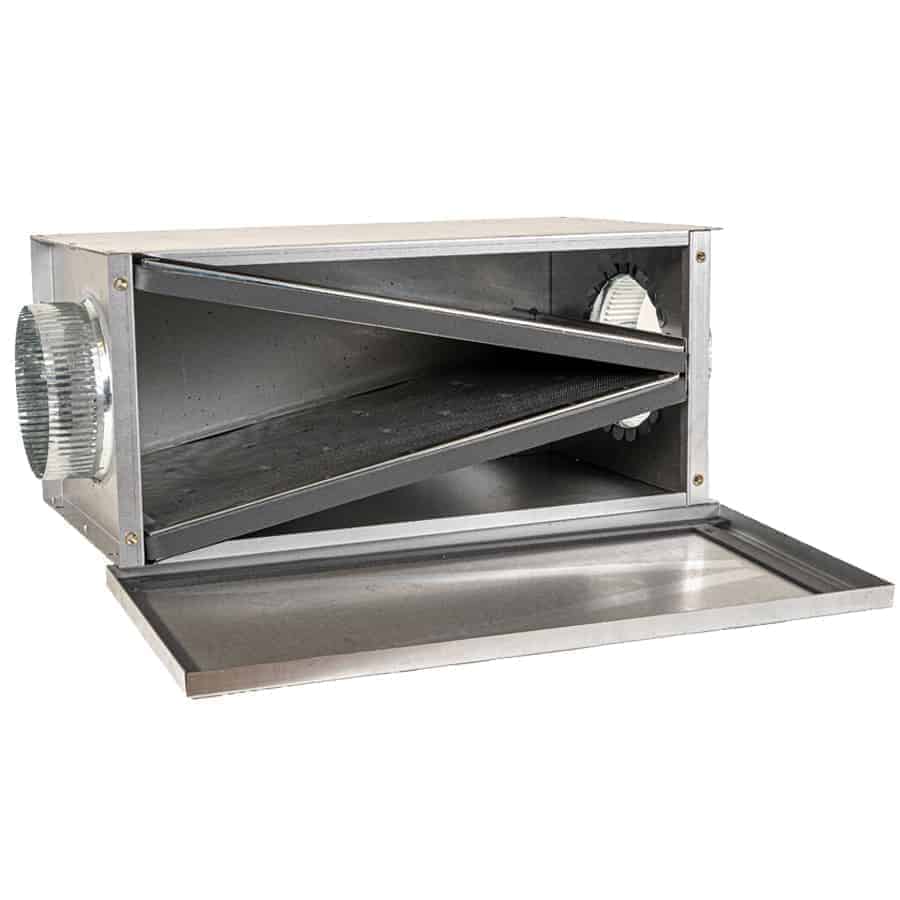

Number of Cartridges:	2
Flange:	6"
Unit size:	22.5"x 10"x 12"
Outlet size	6"
Total Weight:	24 lbs

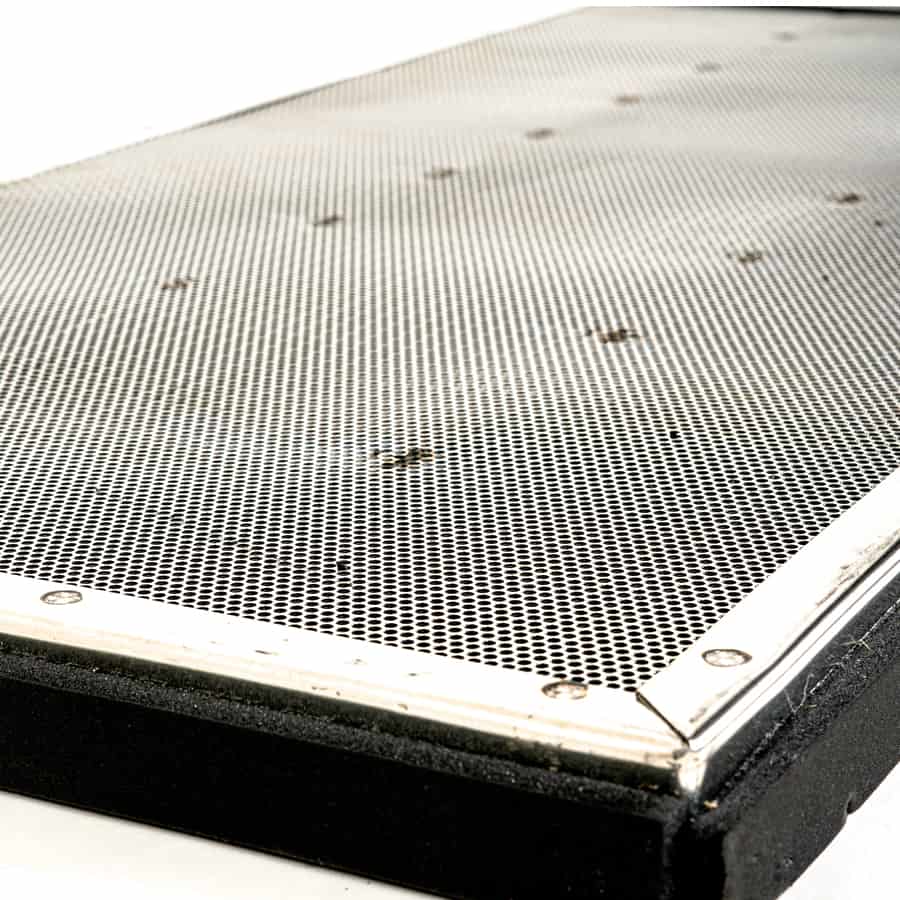

Cartridges Size:	12” x 20” x 1”
Maximum Operating Temp:	176 F
CTC rate:	60
Air flow type:	Designed to push or pull the Air

Reviews (1)

1 review for Air Box 2 Stealth 800 CFM 6″ Flanges Carbon Inline Filter

Jason (verified owner) – November 11, 2020

Rated 5 out of 5
We purchased this filter unit as the final filtration stage for a 100 watt CO2 laser cutter, after prefilters and a large HEPA filter. The unit is impressively well-built, unlike the HEPA unit we bought. It works well, but not perfectly – when cutting wood or acrylic, for example, you can still smell it a little in the output exhaust. I wouldn’t recommend venting it indoors, but at least we aren’t killing passing birds or knocking out pedestrians on the sidewalk outside.

Add a review

Shipping & Delivery

Shiping Note:

ALASKA, HAWAII, PUERTO RICO: a delivery surcharge will apply to these locations. We will notify you before your order ships.

Order processing can take up to (5) business days for Air Box units and replacement filters and up to (4) weeks for custom-built units. We are prioritizing orders for essential services which include government, schools and healthcare industry.

Shipping costs may vary on shipment date due to fluctuating fuel costs and other carrier surcharges. We are doing all we can to ship your orders sooner and at the lowest freight cost possible, thank you!

When Ordering Bundles ( Fans + Air filtration units) order will be shipped separately from 2 different locations. One product might arrived first than the other.

For Air Box shipping policy go here

How to calculate CFM

To calculate the CFM (cubic feet per minute) you need for a room, you can use the following formula:

CFM = (room volume number of air changes per hour) / 60*

Room volume is the cubic footage of the room. To calculate this, multiply the length, width, and height of the room.

Number of air changes per hour is the number of times you want the air in the room to be replaced in an hour. (A good rule of thumb is to aim for 2-3 air changes per hour).

60 is the number of minutes in an hour.

For example:

If a room is 10 feet long, 12 feet wide, and 8 feet high, the room volume would be 960 cubic feet. If you want the air in the room to be replaced 2 times per hour, you would need a fan with a CFM rating of 320.

CFM = (960 cubic feet * 2 air changes per hour) / 60 minutes per hour = 320 cubic feet per minute

It is important to note that this is a general formula. The actual CFM requirements to ventilate a room may vary depending on a number of factors, such as the number of people in the room, the activities taking place in the room, and the type of ventilation system in the room. If you are unsure how many CFM you need, it is always best to consult with a professional.

Here are some additional factors to consider when calculating CFM requirements:

The number of people in the room. The more people in the room, the more CFM you will need to remove the stale air and replace it with fresh air.
The activities taking place in the room. Activities that generate heat, such as cooking or exercising, will require more CFM to remove the hot air and replace it with cooler air.
The type of ventilation system in the room. If the room has a natural ventilation system, such as open windows or doors, you will need less CFM than if the room has a mechanical ventilation system, such as an air conditioner or furnace.
Type of filter being used. CARBON filters and HEPA filters have different CFM requirements, make sure you check the specs closely

By considering all of these factors, you can determine the correct CFM requirements for your room and ensure that you have the proper ventilation to keep the air fresh, healthy and clean.

Product Capacity

3 Components of Poor Indoor Air Quality

Particulates – Very small solid or liquid substances, such as inorganic / organic compounds and dormant / living organisms, that are light enough to float in air.

Microbial – This category represents germs, viruses, and bacteria. These small organisms can only be seen through a microscope, and are present in every environment.

Chemical (Gaseous) – Hundreds of gaseous pollutants, covering all combustion gasses and organic chemicals (VOC’s), have been detected in indoor environments.

Health effects vary widely and depend on the types, concentrations, frequency and duration of exposure.

Quantity	1 - 9	10 - 19	20 - 50
Price	$ 429.95	$ 408.45	$ 386.96
% Discount	-	5%	10%
