STOCK AVAILABLE

Air Box 3 Pre Filter (3 sets per/order) $ 59.95
Back to products

STOCK AVAILABLE

Air Box Junior Pre-Filter Refill (3 filters per/order) $ 47.95

STOCK AVAILABLE

Watch video
Click to enlarge

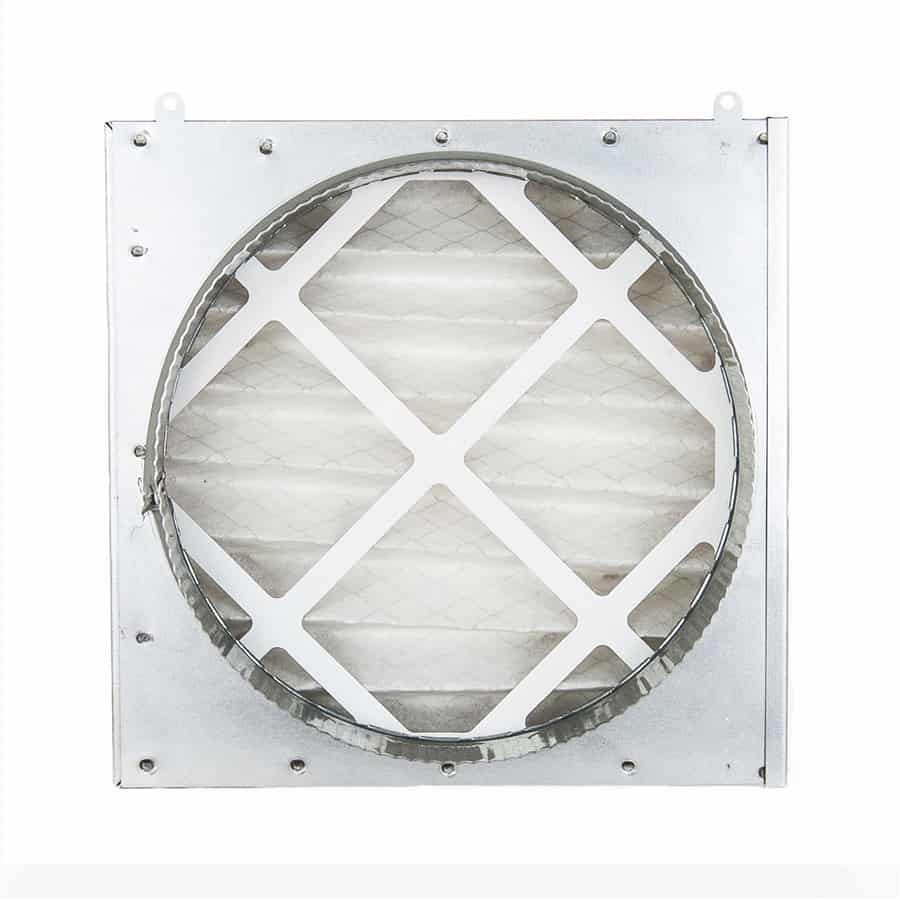

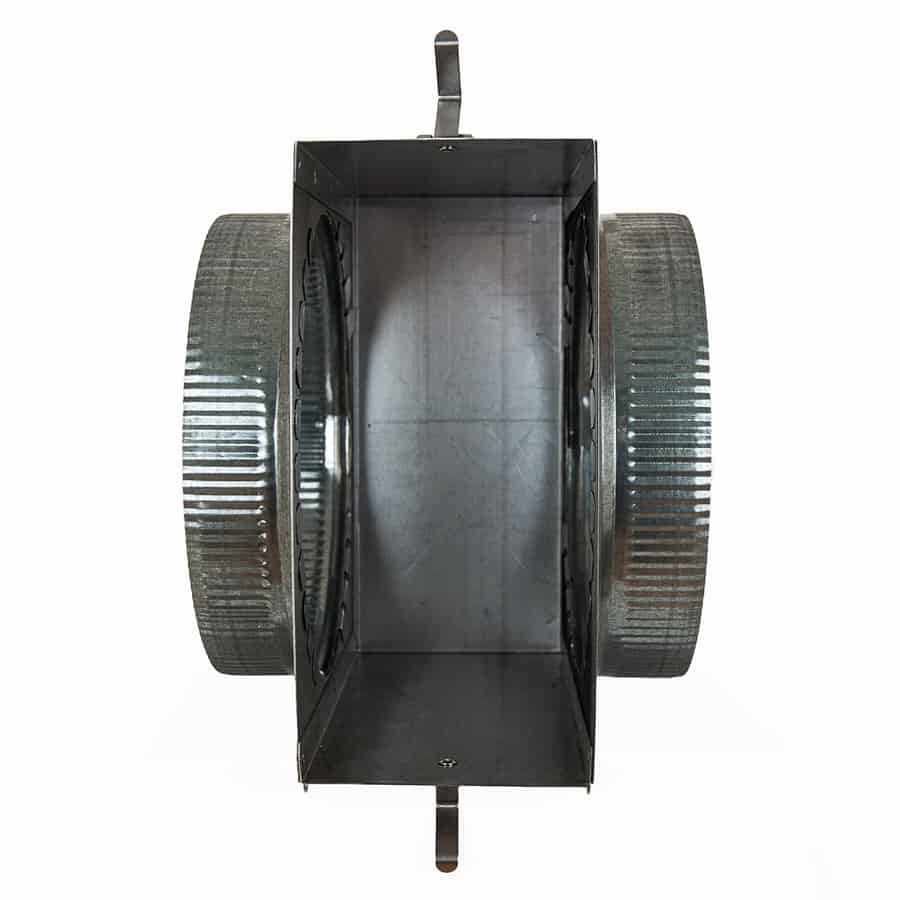

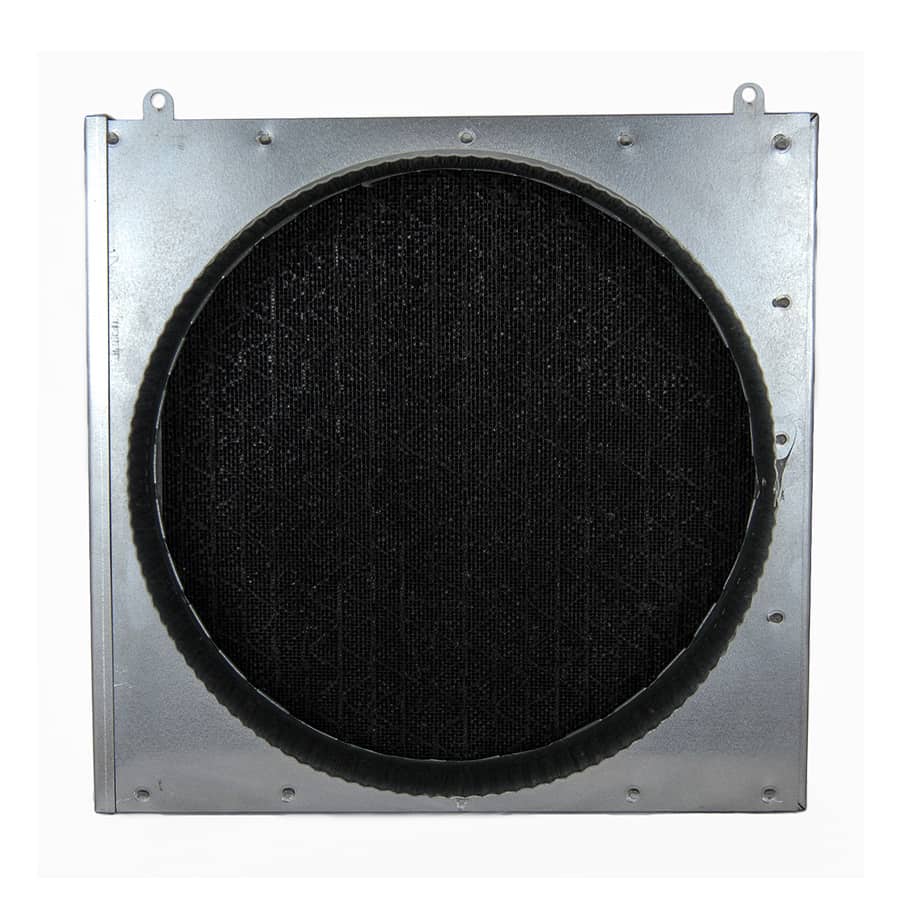

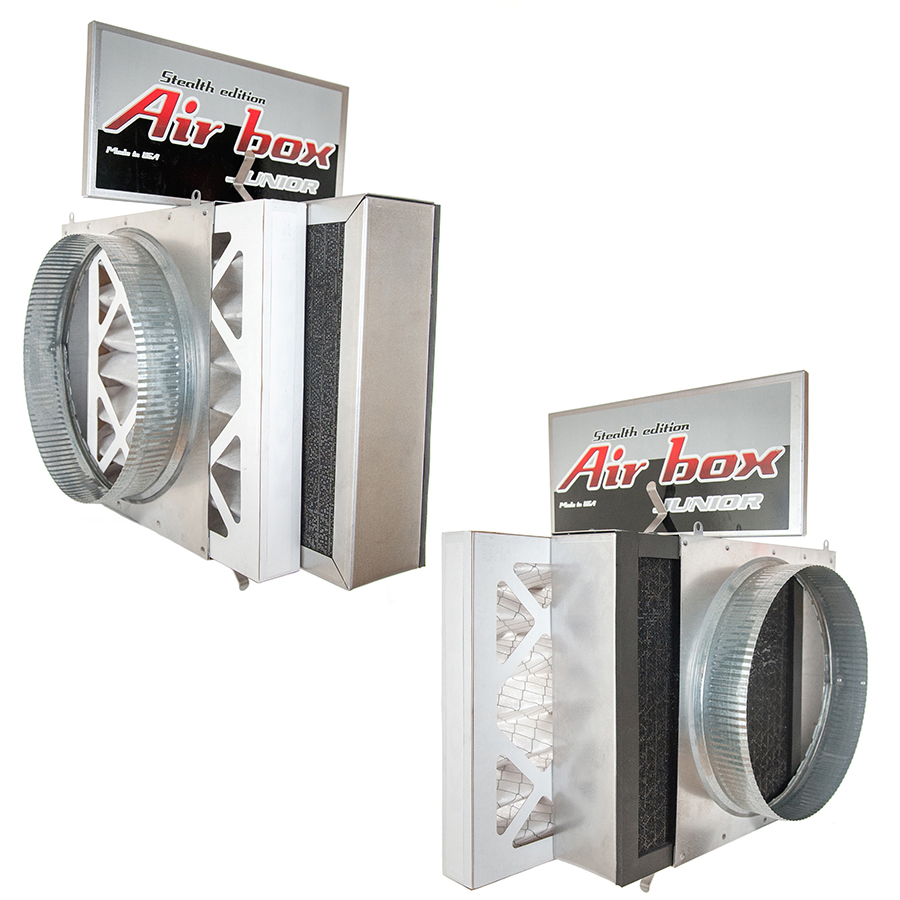

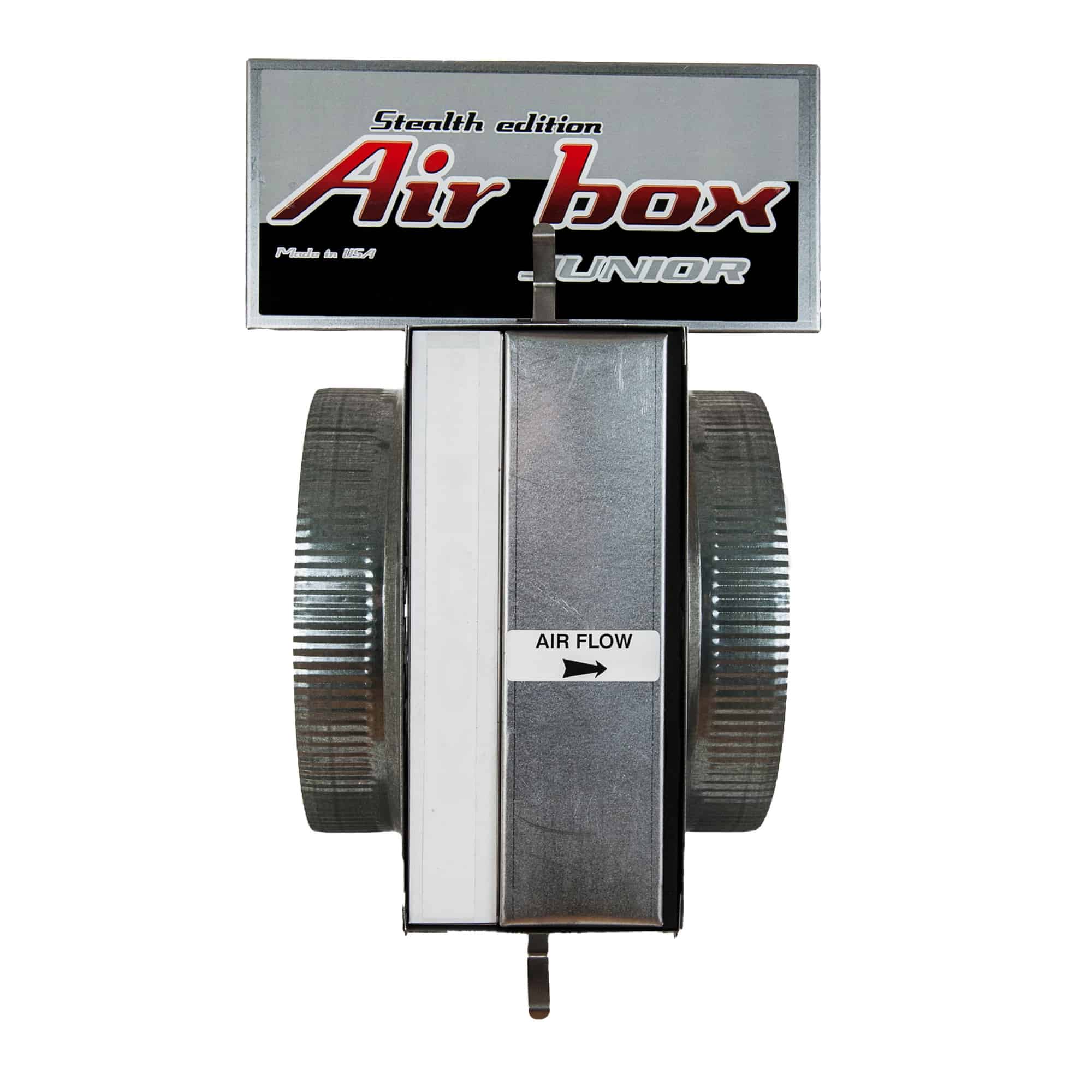

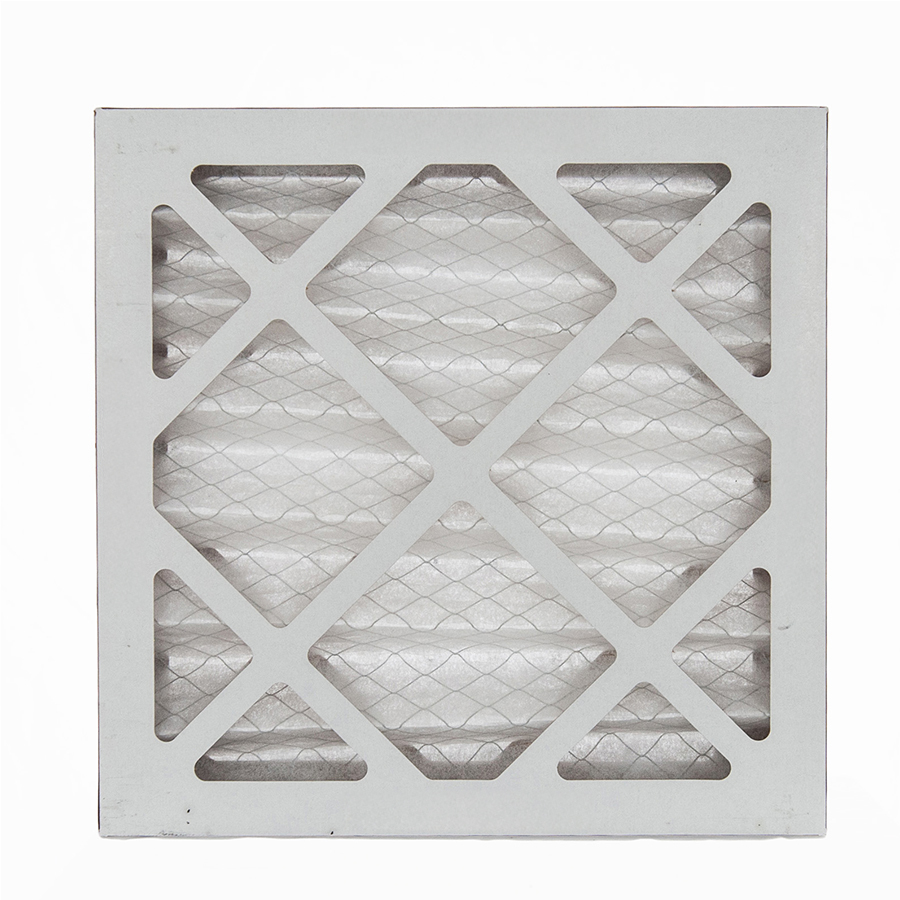

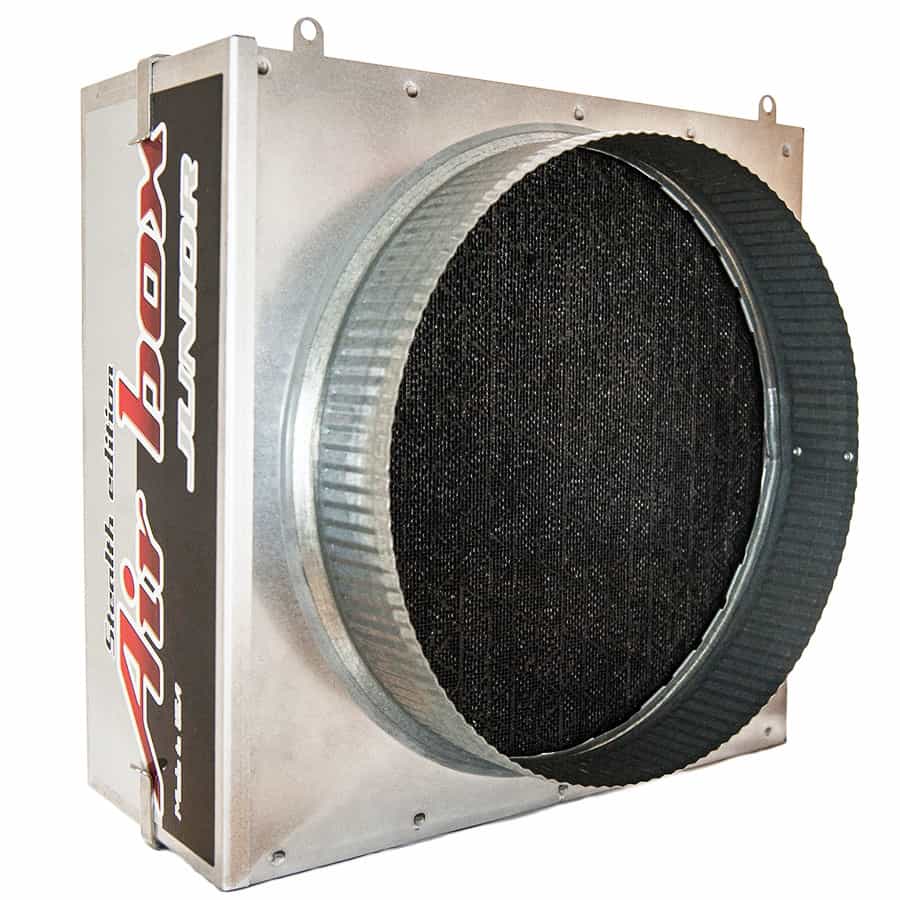

Air Box Junior CARBON Inline Filter 250 CFM 10″ Flange, Odour Control, Pre-Filter Included

$ 357.95

  • Obliterates excess heat, destroys odours and circulates healthy fresh air
  • Dual Filtration Technology- Intake or Exhaust
  • Accepts standard 10″ duct
  • Adaptable to any duct/filtering system
  • Easy to install, easy to use, easy to maintain

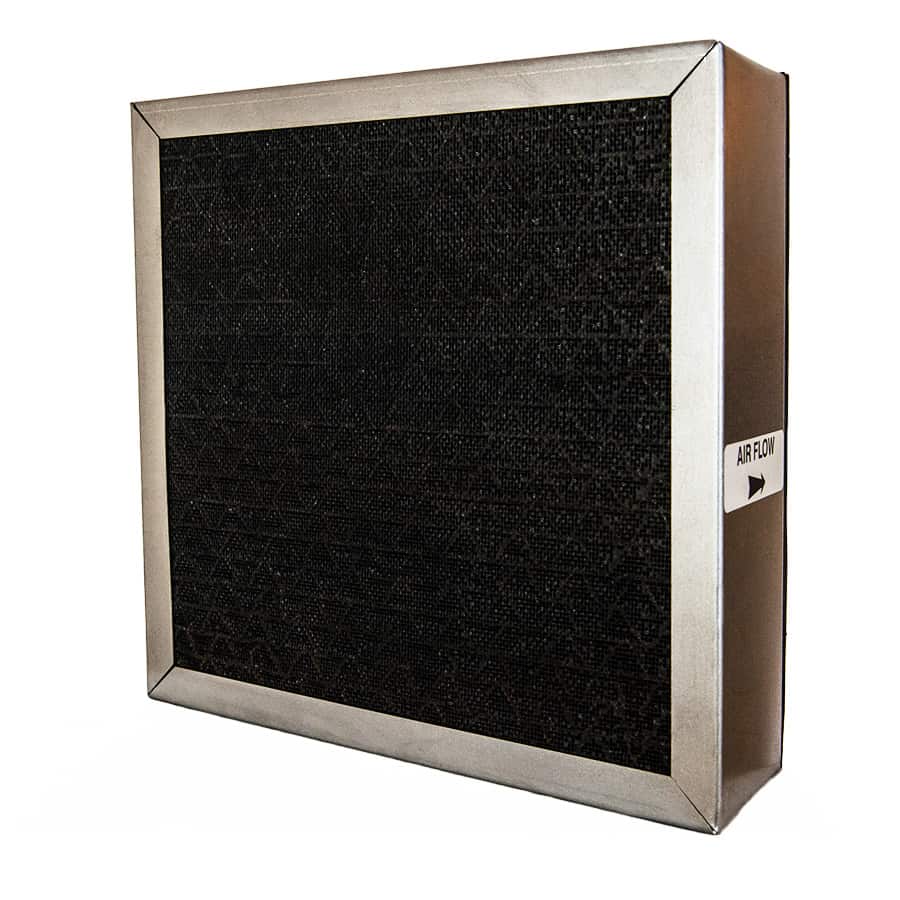

  • Replaceable high-flow carbon filter

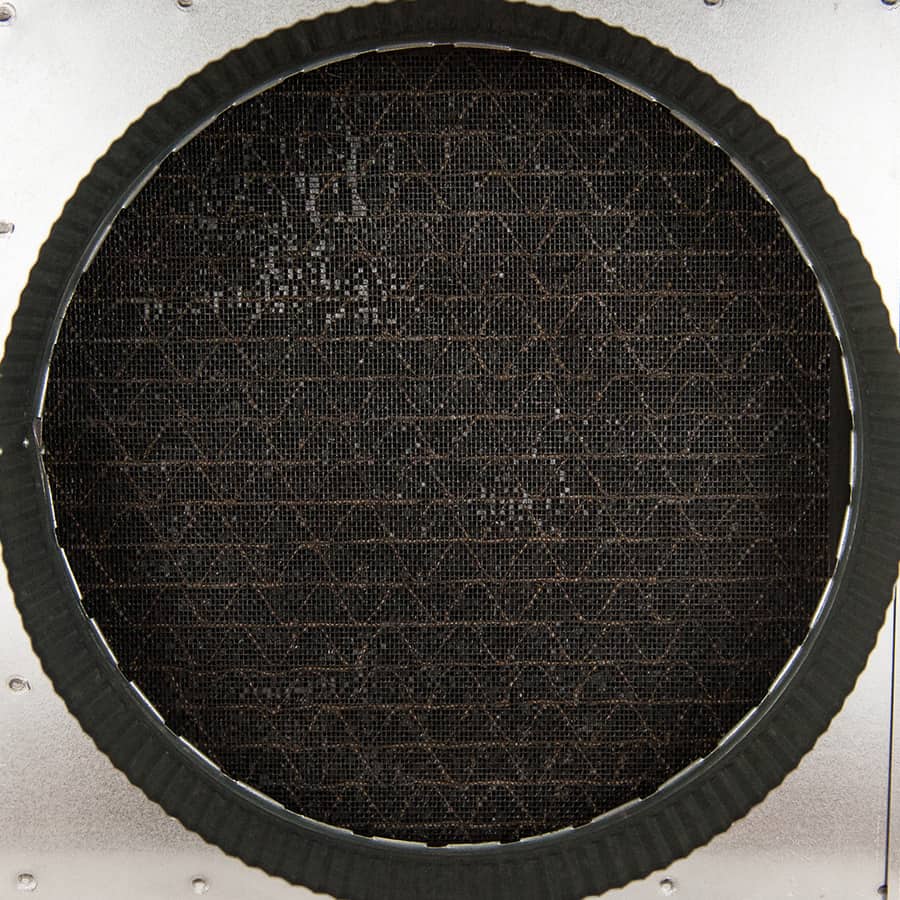

  • 100% premium virgin coconut charcoal
  • 100% of the filter surface area is used
  • For commercial, industrial and residential applications

Discount per Quantity

Quantity 1 - 9 10 - 19 20 - 50
Price $ 357.95 $ 340.05 $ 322.16
% Discount - 5% 10%
Compare
SKU: 4543-C Categories: Air Box Junior, Air Box Models Tags: air box jr coco, asthma, Cigarette Smoke, Classrooms Households with Children, hydroponics, Odor Removal, Pollen, Wood Smoke Brand: Air Box
Share:
Spec Sheet
  • Description
  • Additional information
  • Shipping & Delivery
  • How to calculate CFM
  • Product Capacity
Description

Technical Specifications

The Air Box Junior CARBON filter obliterates excess heat, destroys odours and circulates healthy fresh air. Can be used as an Intake or exhaust and comes with an economical, replaceable CARBON filter. It accepts a standard 10″ duct. Can be easily hung using rope, chain, cable or ratchets. It is easy to install, easy to use, easy to maintain and adaptable to any duct/ filtering system. Replaceable high-flow carbon filter uses 100% premium virgin coconut charcoal medium, 100% of the filter surface area is used. For commercial, industrial and residential applications.



Product name:google_snippetsproduct_auto

SKU:_sku
Price:google_snippetsproduct_auto
category:google_snippetsproduct_auto
Currency:google_snippetsproduct_auto
Brandname:google_snippetsproduct_auto
Regularprice:google_snippetsproduct_auto
saleprice:google_snippetsproduct_auto
Offer available from:google_snippetsproduct_auto
offer valid upto:
offer_stock:
Offer condition:
product seller:
Additional information
Cartridges Size:

3”x 12” x 12”

Total Weight:

14.5 lbs

Maximum Operating Temp:

176 F

CTC rate:

60

Air flow type:

Designed to push or pull the Air

Recommended CFM:

125

Maximum CFM:

250

Residence Time @ Recommended CFM:

0.04

Pressure (W.G.) @ Recommended CFM:

1.0 W.G

Compatible FANS:

Ruck Classic HO 4” or Ruck Classic HO 6”

Shipping & Delivery

Shiping Note:

ALASKA, HAWAII, PUERTO RICO: a delivery surcharge will apply to these locations. We will notify you before your order ships.

Order processing can take up to (5) business days for Air Box units and replacement filters and up to (4) weeks for custom-built units. We are prioritizing orders for essential services which include government, schools and healthcare industry.



Shipping costs may vary on shipment date due to fluctuating fuel costs and other carrier surcharges. We are doing all we can to ship your orders sooner and at the lowest freight cost possible, thank you!

When Ordering Bundles ( Fans + Air filtration units) order will be shipped separately from 2 different locations. One product might arrived first than the other.

For Air Box shipping policy go here

How to calculate CFM
To calculate the CFM (cubic feet per minute) you need for a room, you can use the following formula:

CFM = (room volume * number of air changes per hour) / 60



Room volume is the cubic footage of the room. To calculate this, multiply the length, width, and height of the room.

Number of air changes per hour is the number of times you want the air in the room to be replaced in an hour. (A good rule of thumb is to aim for 2-3 air changes per hour).

60 is the number of minutes in an hour.



For example:

If a room is 10 feet long, 12 feet wide, and 8 feet high, the room volume would be 960 cubic feet. If you want the air in the room to be replaced 2 times per hour, you would need a fan with a CFM rating of 320.


CFM = (960 cubic feet * 2 air changes per hour) / 60 minutes per hour = 320 cubic feet per minute



It is important to note that this is a general formula. The actual CFM requirements to ventilate a room may vary depending on a number of factors, such as the number of people in the room, the activities taking place in the room, and the type of ventilation system in the room. If you are unsure how many CFM you need, it is always best to consult with a professional.



Here are some additional factors to consider when calculating CFM requirements:



  • The number of people in the room. The more people in the room, the more CFM you will need to remove the stale air and replace it with fresh air.
  • The activities taking place in the room. Activities that generate heat, such as cooking or exercising, will require more CFM to remove the hot air and replace it with cooler air.
  • The type of ventilation system in the room. If the room has a natural ventilation system, such as open windows or doors, you will need less CFM than if the room has a mechanical ventilation system, such as an air conditioner or furnace.
  • Type of filter being used. CARBON filters and HEPA filters have different CFM requirements, make sure you check the specs closely



By considering all of these factors, you can determine the correct CFM requirements for your room and ensure that you have the proper ventilation to keep the air fresh, healthy and clean.



Product Capacity

  • Asthma
  • Pollen
  • Wood Smoke
  • Cigarette Smoke
  • Odor Removal
  • Classrooms and Households with Children
  • Laser Cutting

3 Components of Poor Indoor Air Quality

Particulates – Very small solid or liquid substances, such as inorganic / organic compounds and dormant / living organisms, that are light enough to float in air.

Microbial – This category represents germs, viruses, and bacteria. These small organisms can only be seen through a microscope, and are present in every environment.

Chemical (Gaseous) – Hundreds of gaseous pollutants, covering all combustion gasses and organic chemicals (VOC’s), have been detected in indoor environments.

Health effects vary widely and depend on the types, concentrations, frequency and duration of exposure.
