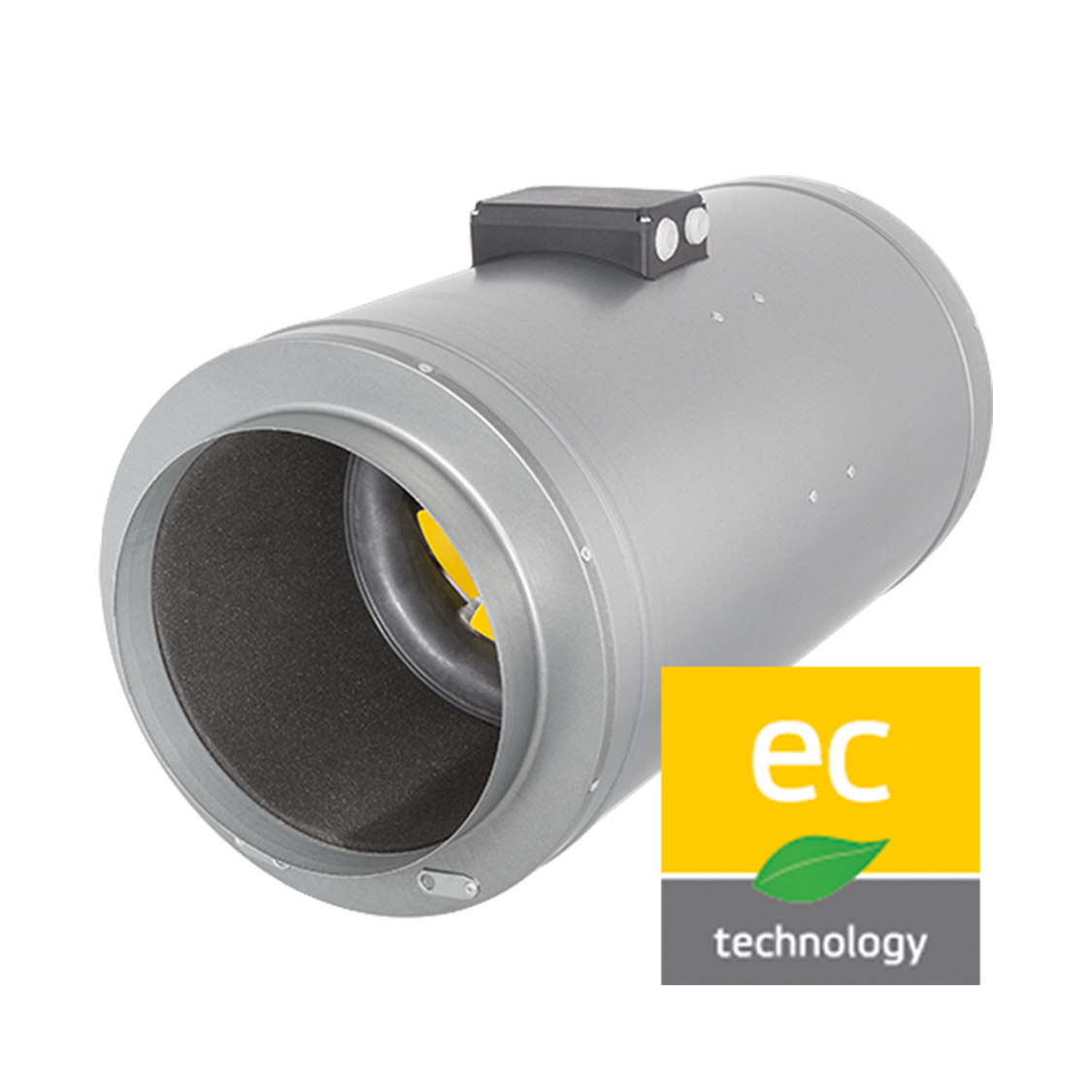

Ruck S-Prime 10″ EVO EC | 1271 CFM Inline Fan
$ 796.95
Ruck S-Prime Evo EC fans are a mixed flow design that maximizes airflow performance with a low noise level. The sound insulated casing makes for silent operation and compact design makes them great for commercial, industrial and residential venting applications.. The EC motors in these fans are infinitely controllable using the MTP 21 (153407) 0-10 V controller.
- Sound insulated mixed flow fan for silent operation
- Steplessly controllable, energy saving powerful EC motor
- Protected motor in the hub area, does not influence the airflow
- Galvanized steel casing
- Available from 6“ to 14“
- 3 year warranty
- Made in Germany
- FOR USE WITH AIR BOX 2 & AIR BOX 2
Bundle and Save!
See "Frequently Bought Together" items below ⬇
Description
Specifications
| 10″ S-Prime Evo EC | 60 Hz | |
| Voltage UN | 120 V 1~ |
| Current Imax | 3.5 A |
| Ambient temperature tA | 40 °C |
| Conveyed medium temperature tM | 40 °C |
| Speed Control | 0-10V |
| Motor protection | TEC |
| Insulation class motor | F |
| Weight | 10,5 kg |
| Number of poles | – |
| IP motor | IP30 |
| IP terminal box | IP44 |
| Min. operating temperature | -30 °C |
Connection data entire unit
| Rated frequency | Hz | 60 |
| Rated voltage | V | 120 |
| Rated power | W | 298 |
| Max. operating current | A | 3.5 |
| Phase | 1~ | |
| Motor Type | EC | |
| Type of motor control | 0-10V | |
| Motor protection | TEC | |
| Capacitor µ | µF | – |
| Capacitor voltage | V | – |
| Insulation class motor | F | |
| Number of poles | ||
| IP motor | IP30 | |
| IP terminal box | IP44 | |
| IP complete unit | IPX4 | |
| Min. operating temperature | °C | -30 |
Additional information
| Weight | 10.5 kg |
|---|---|
| CFM Rating: |
1271 |
| Max RPM: |
3900 |
| Voltage: |
120V |
| Max Amps A: |
3.5 |
| Unit size: |

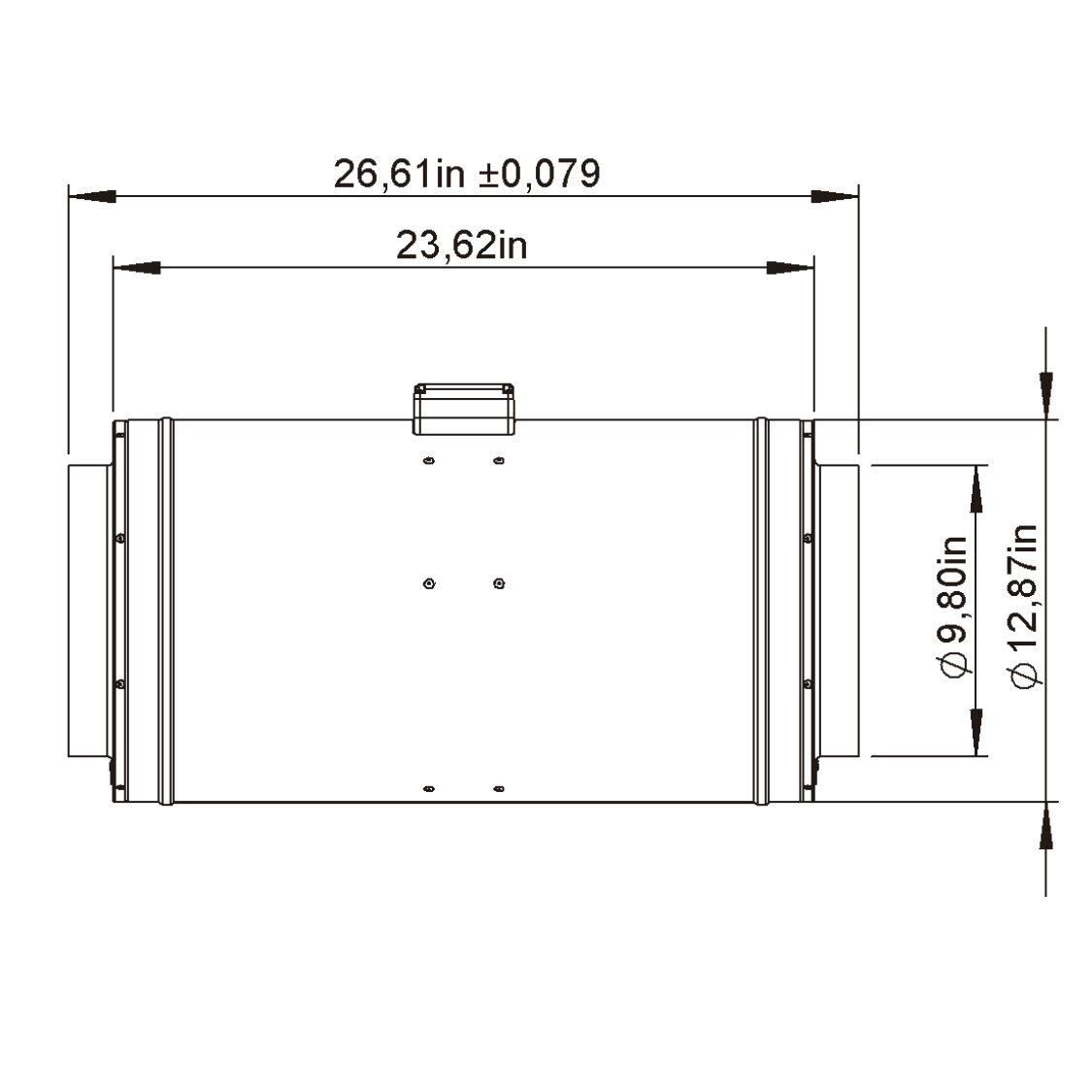

27,17 x 12,60 x 13,58 inches |
Reviews (0)
Shipping & Delivery
Shiping Note:
Dear Customers,
Please be advised that for deliveries to Alaska, Hawaii, and Puerto Rico, a delivery surcharge may apply. We will notify you of any additional charges before your order ships.
Order processing can take from 3 to 5 business days for Air Box filter units, inline fans, and replacement filters, and up to 4 weeks for custom-built orders. We prioritize orders for essential services such as schools, government and the healthcare industry.
We charge a flat shipping rate on the date of your order.
Please note that freight quotes may vary on the shipment date due to fluctuating fuel prices, brokerage fees, and/or special handling requirements. We do all we can to ship your orders promptly and at the lowest freight cost possible.
Note: Air Box 4 and Air Box 4+ filter units are stacked high on skids for shipping to ensure their protection and prevent any damage during transit.
Additionally, bundles, which include Air Box units and inline fans, may ship from different locations. As a result, one product may arrive before the other.
Thank you for your understanding and continued support
For Air Box shipping policy go here
How to calculate CFM
To calculate the CFM (cubic feet per minute) you need for a room, you can use the following formula:
CFM = (room volume * number of air changes per hour) / 60
Room volume is the cubic footage of the room. To calculate this, multiply the length, width, and height of the room.
Number of air changes per hour is the number of times you want the air in the room to be replaced in an hour. (A good rule of thumb is to aim for 2-3 air changes per hour).
60 is the number of minutes in an hour.
For example:
If a room is 10 feet long, 12 feet wide, and 8 feet high, the room volume would be 960 cubic feet. If you want the air in the room to be replaced 2 times per hour, you would need a fan with a CFM rating of 320.
CFM = (960 cubic feet * 2 air changes per hour) / 60 minutes per hour = 320 cubic feet per minute
It is important to note that this is a general formula. The actual CFM requirements to ventilate a room may vary depending on a number of factors, such as the number of people in the room, the activities taking place in the room, and the type of ventilation system in the room. If you are unsure how many CFM you need, it is always best to consult with a professional.
Here are some additional factors to consider when calculating CFM requirements:
- The number of people in the room. The more people in the room, the more CFM you will need to remove the stale air and replace it with fresh air.
- The activities taking place in the room. Activities that generate heat, such as cooking or exercising, will require more CFM to remove the hot air and replace it with cooler air.
- The type of ventilation system in the room. If the room has a natural ventilation system, such as open windows or doors, you will need less CFM than if the room has a mechanical ventilation system, such as an air conditioner or furnace.
- Type of filter being used. CARBON filters and HEPA filters have different CFM requirements, make sure you check the specs closely
By considering all of these factors, you can determine the correct CFM requirements for your room and ensure that you have the proper ventilation to keep the air fresh, healthy and clean.
